Allison Performance

ATS ALLISON KITS
Installed by Crank It Up Diesel
All Upgrades are Availible for LB7, LLY, & LBZ

All of these upgrades are done in house. These kits are also avalable seperately for you to install yourself. Due to the extreamly long durability of the Allison transmissions, it is often that a complete replacement isn't nessasary and these upgrades are a perfect solution to your power holding needs.

ATS Stage 1 500hp: $2222.00

Increased towing capability, power holding to 500hp. Mild street/strip use.

ATS Five Star Torque Converter

ATS Non-vented Clutches:
C1-16 Friction single sided
C2-14 Friction, 7 clutch (Comes with new machined P1 Drive Flange, HD torington bearing & Snap ring)
C3-12 Friction, 6 clutch (Comes with machined pressure plate, lower spring plate, steel planetary shim, new bonded modified piston & 1 extra thick steel to adjust clearance)

A-Trim & B-Trim shift valves
Internal & External Filters
Pump Gaskets
Transfer case gasket

STAGE 1 INSTALLED: $2979
$44 Fluid
$54 Allison Deep Pan
$164 Pump Kit (HIGHLY RECOMENDED)
$495 Labor

ATS Stage 2 500-600HP $2698.00

Increased towing capability, Power holding to 500-600hp, Mild street/strip & sled pulling.

ATS Five Star Torque Converter

ATS Non-vented Clutches:
C1-16 Friction single sided
C2-14 Friction, 7 clutch (Comes with new machined P1 Drive Flange, HD torington bearing & Snap ring)
C3-12 Friction, 6 clutch (Comes with machined pressure plate, lower spring plate, steel planetary shim, new bonded modified piston & 1 extra thick steel to adjust clearance)
C4-12 Frictioin, 6 clutch (Comes with lower spring plate, new bonded modified piston & 1 extra thick steel to adjust clearance)

A-Trim & B-Trim shift valves
Internal & External Filters
Pump Gaskets
Transfer case gasket

ATS Pump Kit:
Pressure regulator valve & spring (Increases main line pressure and eliminates 5th gear pressure reduction, works on LB7 & LLY)
Pump Gaskets
Converter hub seal and o-ring

A-Trim & B-Trim shift valves
Internal & External Filters
Extension housing gasket
Transfer case gasket

STAGE 2 INSTALLED: $3291
$44 Fluid
$54 Allison Deep Pan
$495 Labor

ATS Stage 3 600+ HP $3812.00

Increased towing capability, Power holding to 600+ hp, Competition street/strip & sled pulling.

ATS Five Star Torque Converter

ATS Copilot:
Increases clutch pack apply pressure via electronicly controlled adjustable on the fly computer system. Will force T/C lockup after 1-2 shift & maintain lockup between shifts when in race mode. It only apply's pressure when needed based off MAP (Manifold Air Pressure) and TPS (Throttle Position Sensor) .

ATS Non-vented Clutches:
C1-16 Friction single sided
C2-14 Friction, 7 clutch (Comes with new machined P1 Drive Flange, HD torington bearing & Snap ring)
C3-12 Friction, 6 clutch (Comes with machined pressure plate, lower spring plate, steel planetary shim, new bonded modified piston & 1 extra thick steel to adjust clearance)
C4-12 Frictioin, 6 clutch (Comes with lower spring plate, new bonded modified piston & 1 extra thick steel to adjust clearance)

A-Trim & B-Trim shift valves
Internal & External Filters
Pump Gaskets
Transfer case gasket

ATS Pump Kit:
Pressure regulator valve & spring (Increases main line pressure and eliminates 5th gear pressure reduction, works on LB7 & LLY)
Pump Gaskets
Converter hub seal and o-ring

A-Trim & B-Trim shift valves
Internal & External Filters
Extension housing gasket
Transfer case gasket

STAGE 3 INSTALLED: $4405 SPECIAL: $4280
$44 Fluid
$54 Allison Deep Pan
$495 Labor

* When you seperate the C4 Clutch Pack as an option, The Stage 3 Upgrade becomes the same as the Crank It Up Diesel Special that has been offered for the last 3 years ($3980) The Stage 3 Is the Crank It Up Diesel Special with the C4 Option.

Additional Installation Options:
Add ATS High Capacity Pan......................$280
Add Transynd Fluid...................................$180

ATS Complete Transmissions
The ATS EXTREME is recomended for power levels over 600RWHP. Recomended when Twin Cp3's and Injectors are added on top of a Turbo upgrade or nitrous

ASSEMBLY EXTREME..........................$7,733.00
Co-Pilot Electronic Lockup Controller
High Capacity Transmission Pan
Five Star Viskus Clutch Drive Torque Converter(tm)
ATS High Performance Transmission
- Heavy duty rebuilt transmission
- The ultimate in transmission reliability and performance
- Proprietary ATS transmission internal clutch pack and hydraulic designs
- Ability to handle competition level power and application

ASSEMBLY STAGE I.........................................$4,698.00
High Capacity Transmission Pan
Five Star Viskus Clutch Drive Torque Converter(tm)
ATS High Performance Transmission
- Heavy duty rebuilt transmission
- Better mileage and performance due to Viskus Clutch Drive Converter.
- Ability to reliably use exhaust brake.
- Ability to reliably pull or haul heavy loads.
- An excellent replacement for a worn out transmission and torque converter.

ASSEMBLY STAGE II........................................$5,821.00
Co-Pilot Electronic Lockup Controller
High Capacity Transmission Pan
Five Star Viskus Clutch Drive Torque Converter(tm)
ATS High Performance Transmission
- Heavy duty rebuilt transmission
- Better mileage and performance due to Viskus Clutch Drive Converter.
- Ability to reliably use exhaust brake.
- Ability to reliably pull or haul heavy loads.
- Intelligent torque converter clutch lockup and shift enhancement.
- An excellent replacement for a worn out transmission and torque converter.

*Free Shipping and Installation only $400 on all ATS Complete Transmissions.

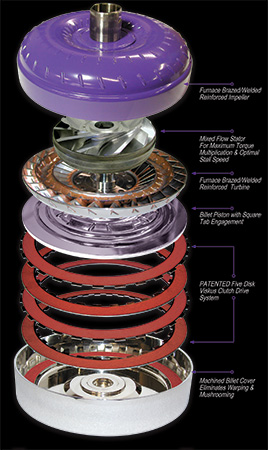

ATS Five Star Torque Converter......$1388
